Key Features :

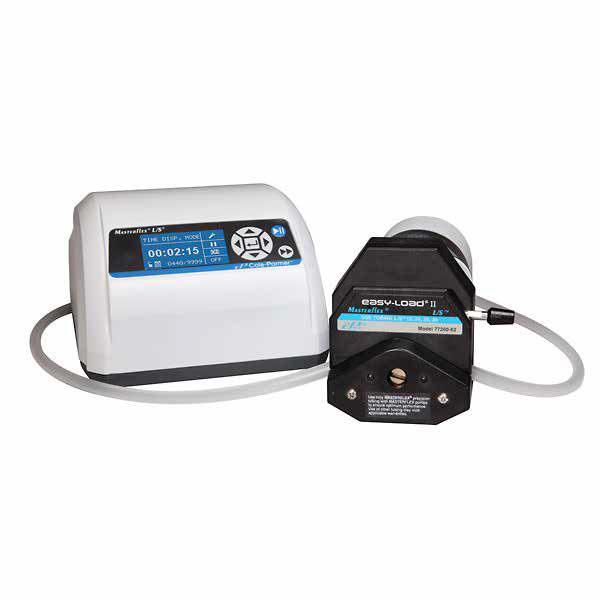

• Precision digital drives offer three dispensing modes and precision low-maintenance motors – modular format lets you place motor and controller where convenient
• Flow rate 0.0012 to 3400 mL/min with L/S tubing. Flow rate depends on drive rpm and tubing size.
• Graphical LCD shows four operating modes continuous run, timed dispense, copy dispense, volume dispense. View pump performance continually.
• Menu-driven interface lets you select one of seven languages for programming and operation
• Dispense by mL – volume in mL of each dispense, 0.001 to 9999 mL; Copy – 1 to 9,999 dispense cycles; or SEC – time interval between each dispense cycle (1 to 9,999 secs)
• Reversible motor – purge tubing before or after pumping; pump fluid in either direction
• Brushless, maintenance-free motor offers ±0.1% speed control accuracy with a 6000 to 1 turndown ratio
• Powerful motors let you stack 2 pump heads for increased flow rates and for multichannel applications
• Remote control capabilities
– Speed control input scalable 0 to 20 mA, 4 to 20 mA, or 0 to 10 V
– Pumping direction requires open collector or contact closure
– Start/stop/purge requires open collector or contact closure
– Tachometer output scalable 0 to 20 mA, 4 to 20 mA, 0 to 10 V, open collector
• Stackable, splash-resistant ABS plastic controller housing is IP33 rated; drive housing is epoxy finished steel, IP33 rated
• 6-ft (1.8-m) cable connects drive and controller.
• Remote control capabilities via a DB25 female connector on back of controller
• 2 years warranty
